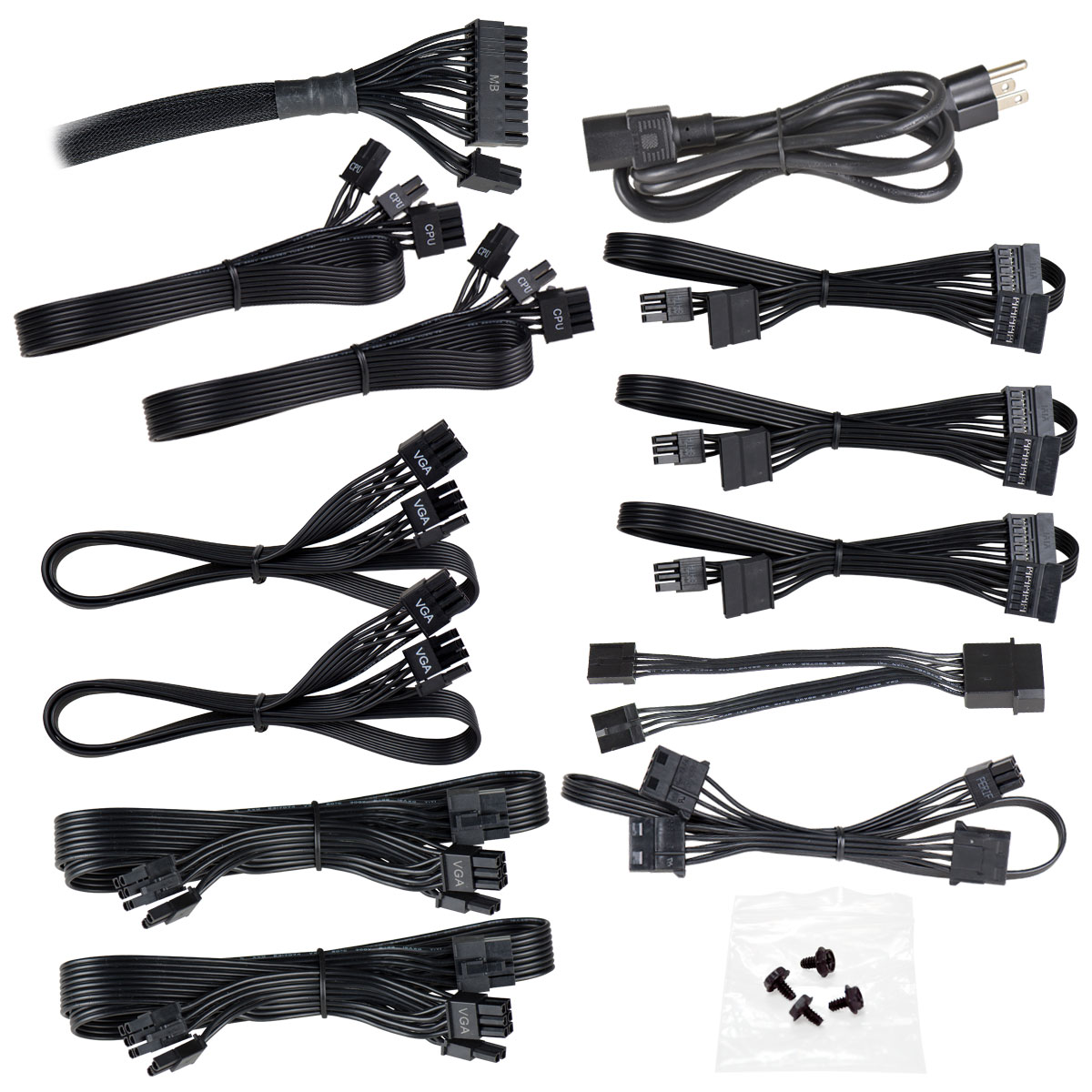

CABLE LENGTH
| 1x 600mm (m) |
| 2x 650mm (m) |
| 2x 650mm, 750mm, 2x 650mm (m) |
| 3x 550mm, 650mm, 750mm (m) |
| 1x 550mm, 650mm, 750mm (m) |
| 1x 100mm (m) |
| 1x 1500mm (m) |
| Modular |
CONNECTOR QUANTITY
| 1x |
| 2x 8pin (4+4) |
| 6x 8pin (6+2) |
| 9x |
| 3x |
| 2x |
POWER SPECS
| 100 - 240 VAC, 10A, 50 - 60 Hz |
| +3.3V | +5V | +12V | +5Vsb | -12V |
| 24A | 24A | 62.4A | 3A | 0.5A |
| 748.8W |
| 120W | 748.8W | 15W | 6W |
| 750W @ +50C |
ADDITIONAL DETAILS
| 0° to 50° C |
| 100% |
| Yes |
| 100,000 Hours |
| 7 lbs |
| 85mm (H) x 150mm (W) x 165mm (L) |
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement |
| 135mm Fluid Dynamic Bearing |
Product Warranty
This product comes with a 5 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
